Christy/Cobb provides services in the design of new bridges, reparation, renovation and expansion of existing bridges.
Replacement of Bridge over Butler Creek on Lauderdale County Road 61, ALDOT Project ACBRZ62145-ATRIP (005)
Lauderdale County, Alabama

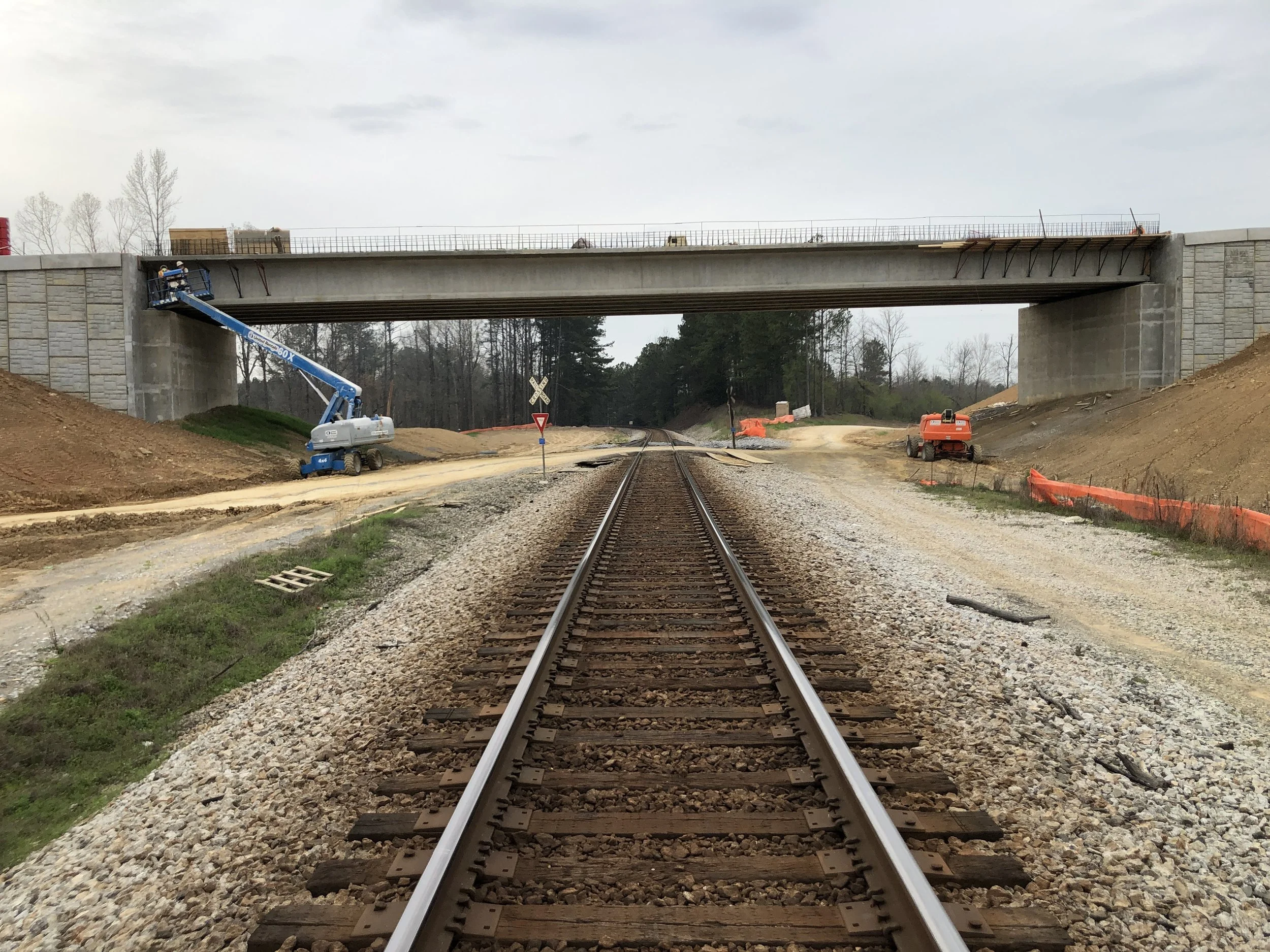

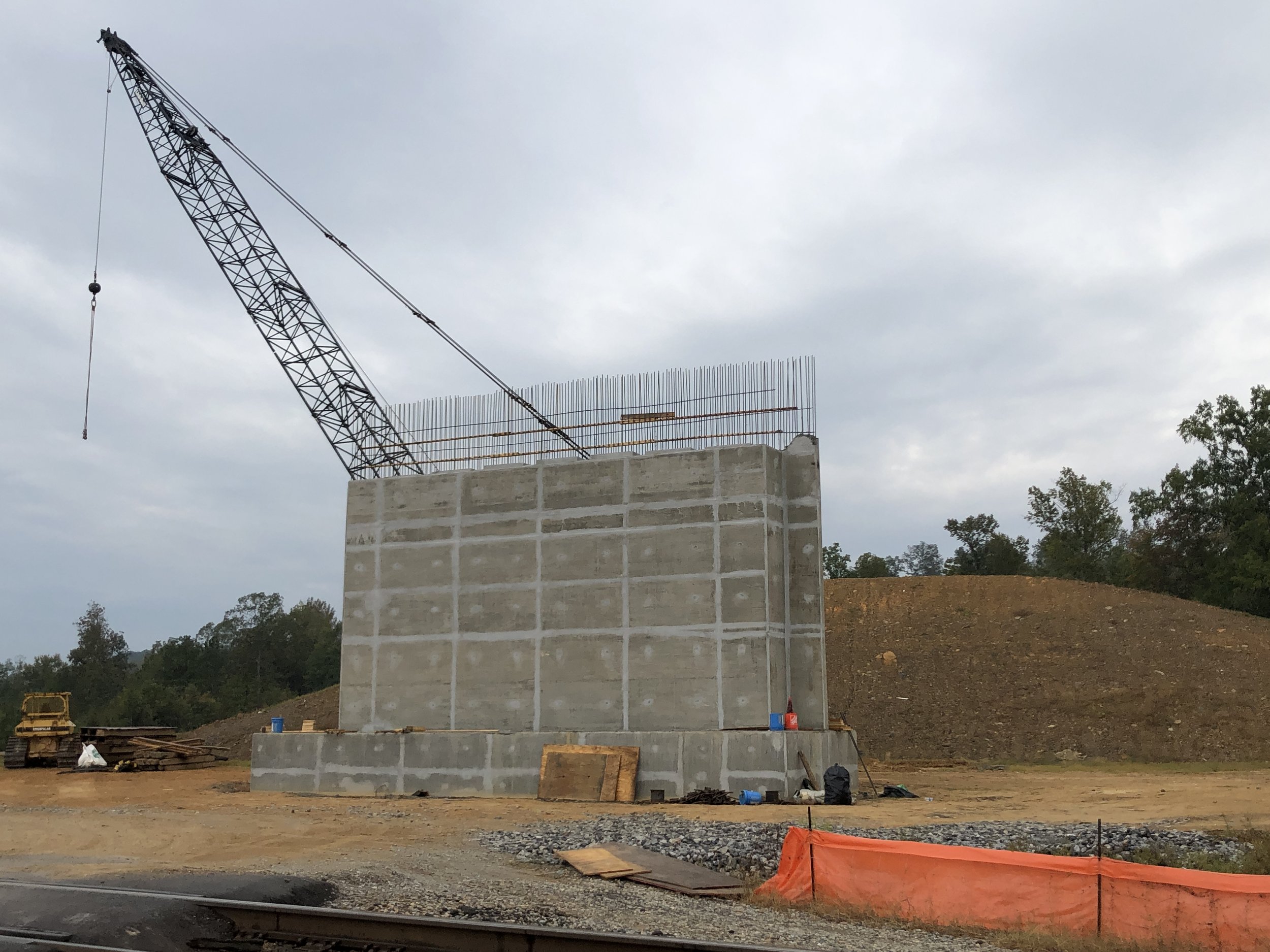

Christy/Cobb, provided the structural design of an access bridge over CSX railroad at Elvira Road at the new Blackridge Development in Hoover Alabama. The bridge will be designed as a single span bridge having an approximate length of 160 feet. Christy/Cobb designed the abutments below the superstructure and provided construction phase services as well.
Black Creek Pedestrian Bridge at Noccalula Park
Gadsden, Alabama
Christy/Cobb was responsible for the structural engineering design of a 100 foot long pedestrian suspension bridge over Black Creek at Noccalula Falls Park. The bridge connects hiking trails on each side of the creek downstream of Noccalula Falls. The project includes ASTM A586 and A603 galvanized steel cables, galvanized structural steel supports and rock anchors.
Bridge over CSX Railroad at Ross Bridge
Hoover, Alabama

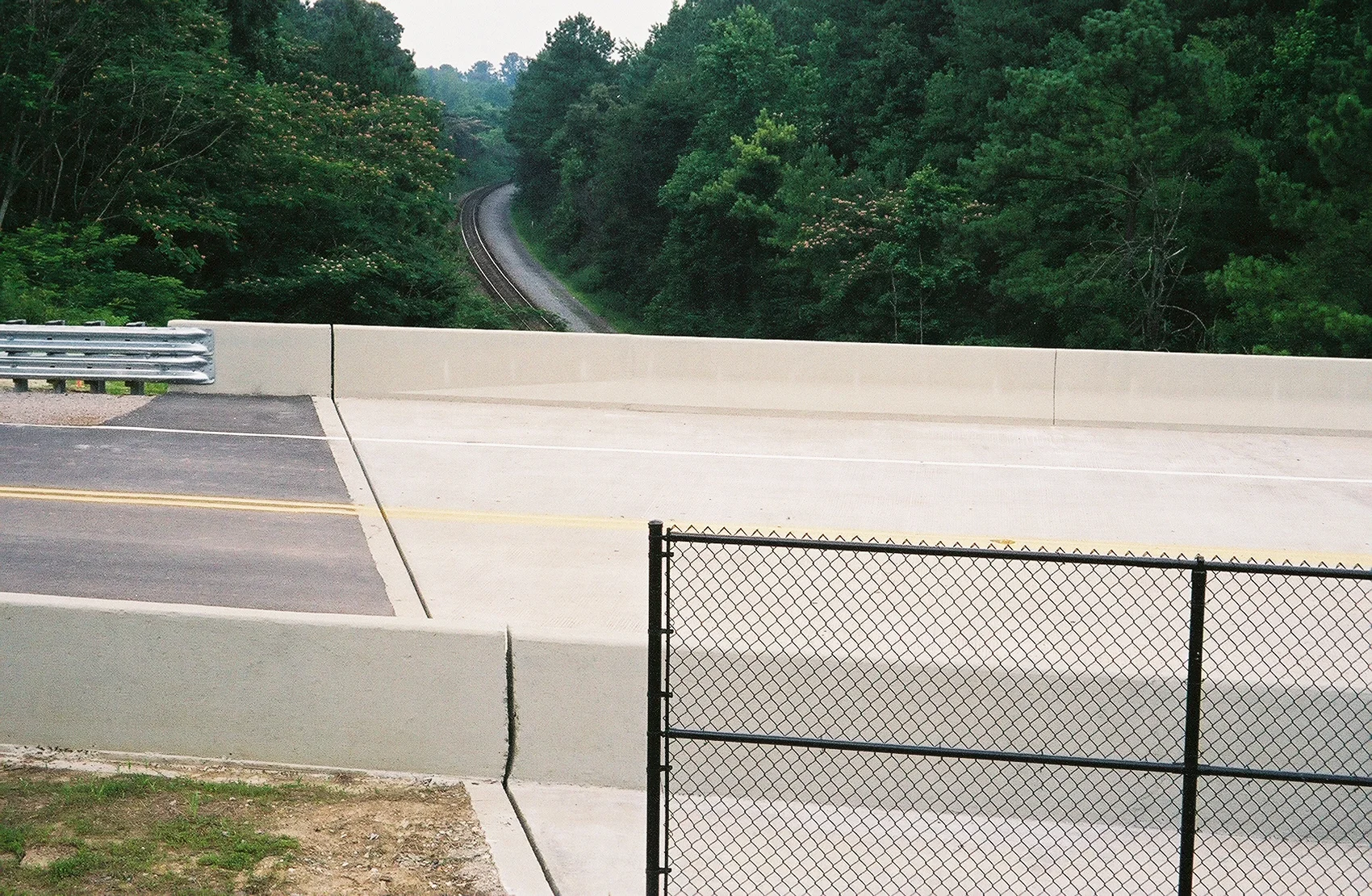

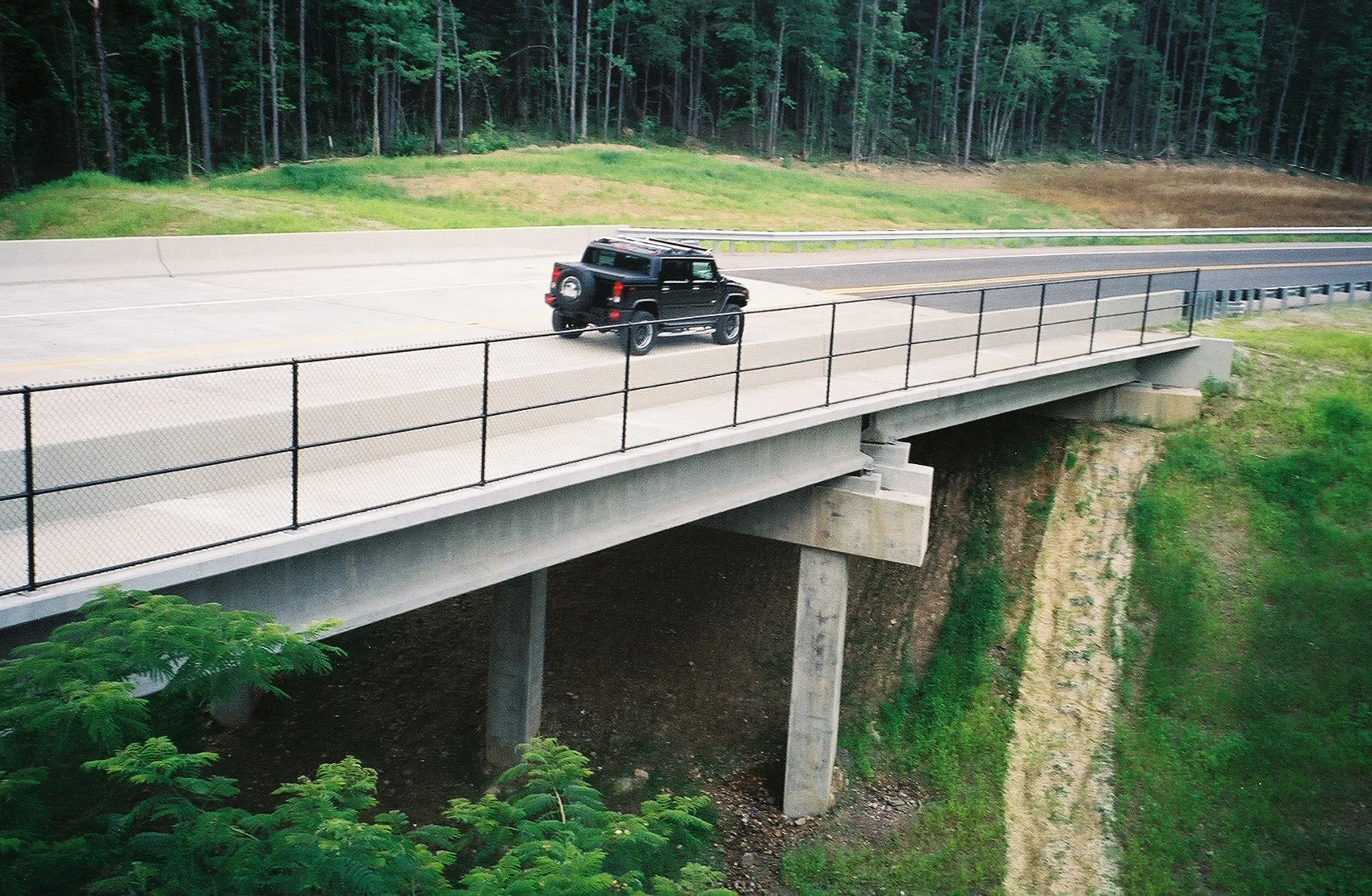

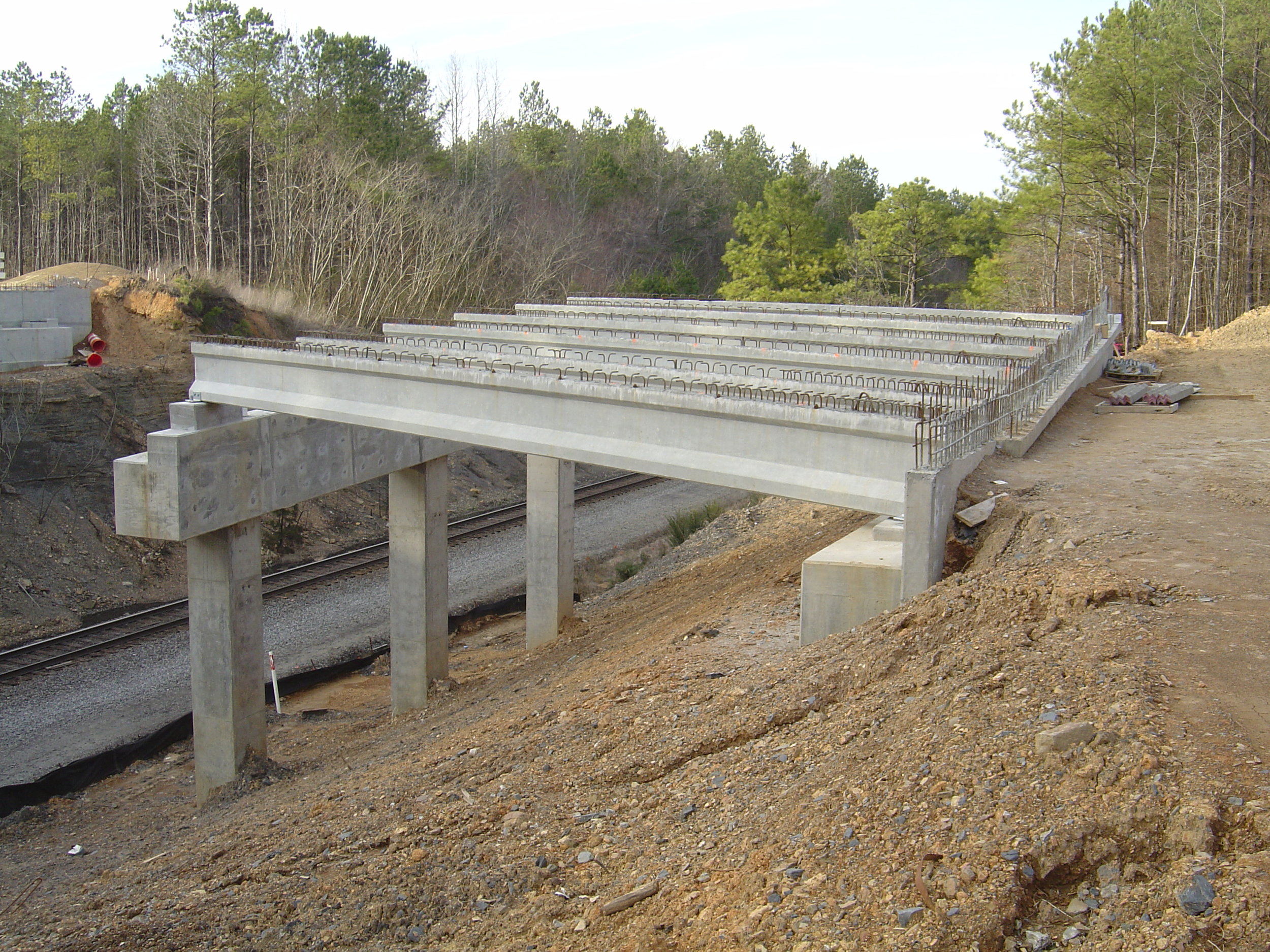

The bridge over CSX railroad is located at the Ross Bridge development in the City of Hoover. Ross Bridge was developed by The Daniel Corporation and USX Reality. The design of the bridge includes the horizontal, vertical and the superelevation features required by the roadway alignment as well as features to support gas, water, electrical and other utilities servicing the development. The bridge also includes a pedestrian walkway that connects paths traversing the development. The bridge has a 102 foot span with BT54 pre-stressed girders and a 47 feet span with AASHTO type II concrete girders.
Replacement of Bridge over Butler Creek on Lauderdale County Road 61, ALDOT Project ACBRZ62145-ATRIP (005)
Lauderdale County, Alabama

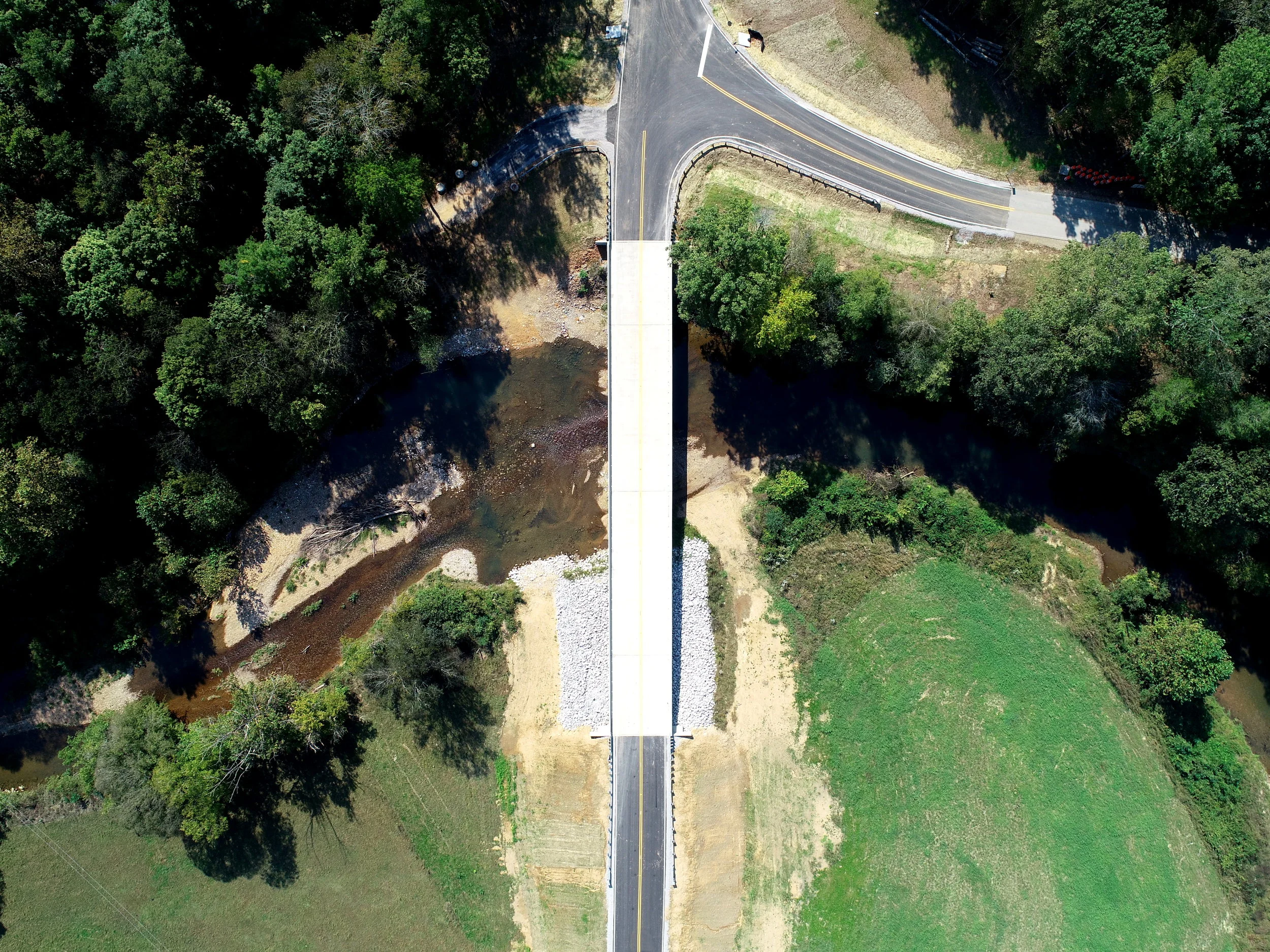

Christy/Cobb, served as the structural engineer in responsible charge for the replacement of the bridge over Butler Creek on Lauderdale County Road 61. The existing bridge built in 1936, had an overall length of 132 feet consisting of three spans of 51 feet, 50 feet and 31 feet. The replacement bridge has an overall length of 240 feet long with spans consisting of two 40 foot and two 80 foot spans. Christy/Cobb served as the project’s prime consultant. Geotechnical and civil engineering services were provided to Christy/Cobb by Terracon and Sain Associates.
Access Bridge at the Honda Plant
Lincoln, Alabama

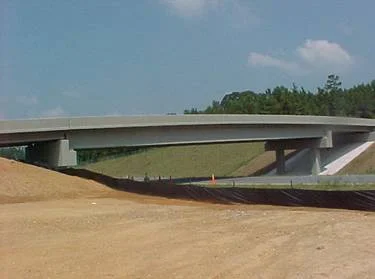

Christy/Cobb provided the structural design for a bridge located in the Honda plant. The three span bridge was designed and constructed with prestressed concrete girders. The bridge is 39 feet wide and 180 feet long. The longest span is 114 feet.
Bridge over Shades Creek at Ross Bridge
Hoover, Alabama

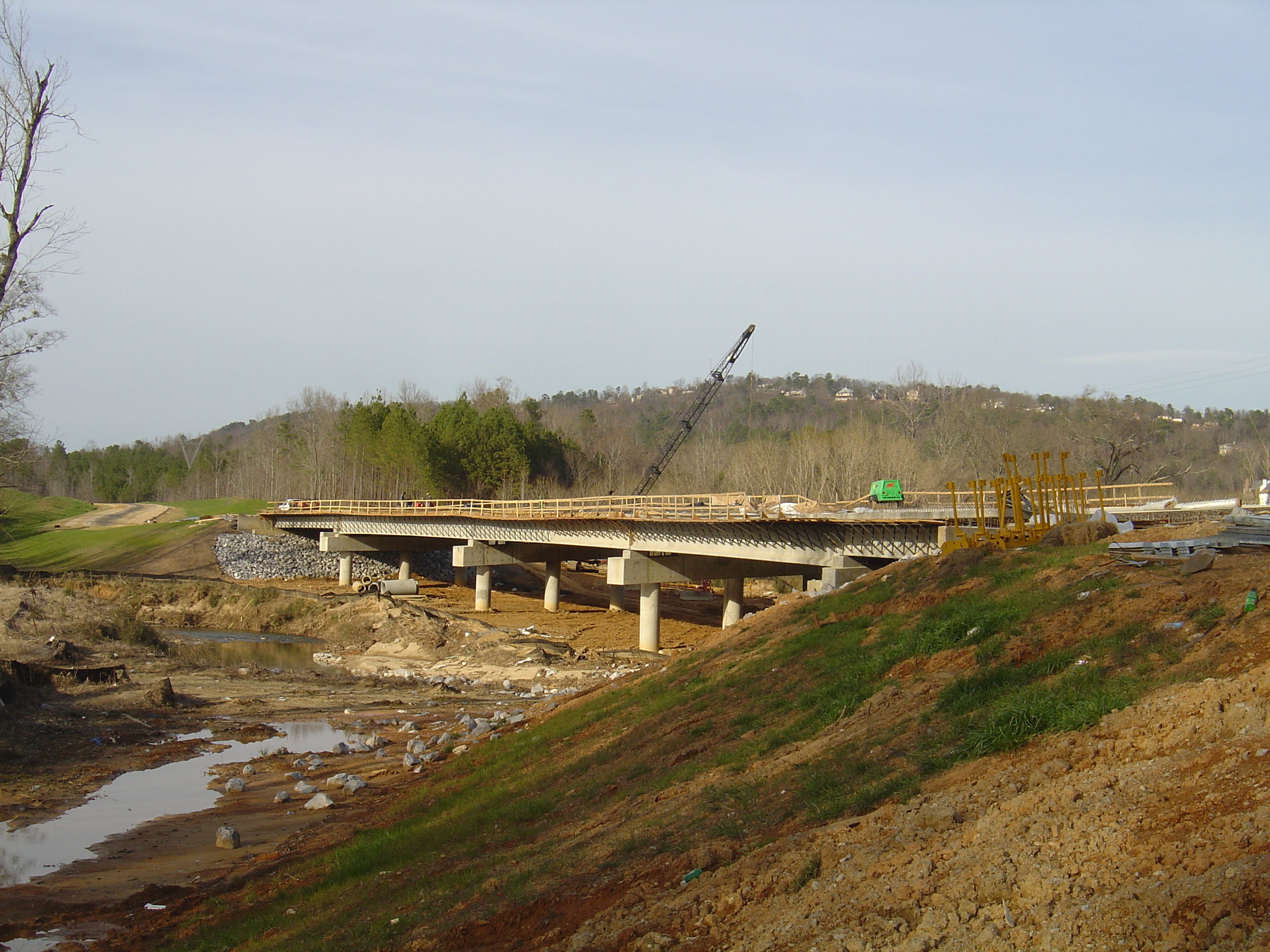

The bridge over Shades Creek is located at the Ross Bridge development in the City of Hoover. Ross Bridge was developed by The Daniel Corporation and USX Realty. The design of the bridge includes the horizontal, vertical and superelevation features required by the roadway alignment and includes features to support gas, water, electrical and other utilities servicing the development. The bridge also includes a pedestrian walkway that connects paths traversing the development. The bridge is constructed with three 108 feet interior spans utilizing BT63 prestressed girders and 62 feet end spans using AASHTO type III concrete girders.
